analog lab #5

Adding a resistor and a capacitor to the inputs and outputs of the circuit is a good idea because the resistor can block any excessive AC current and the capacitor will block all DC current from going through the circuit.

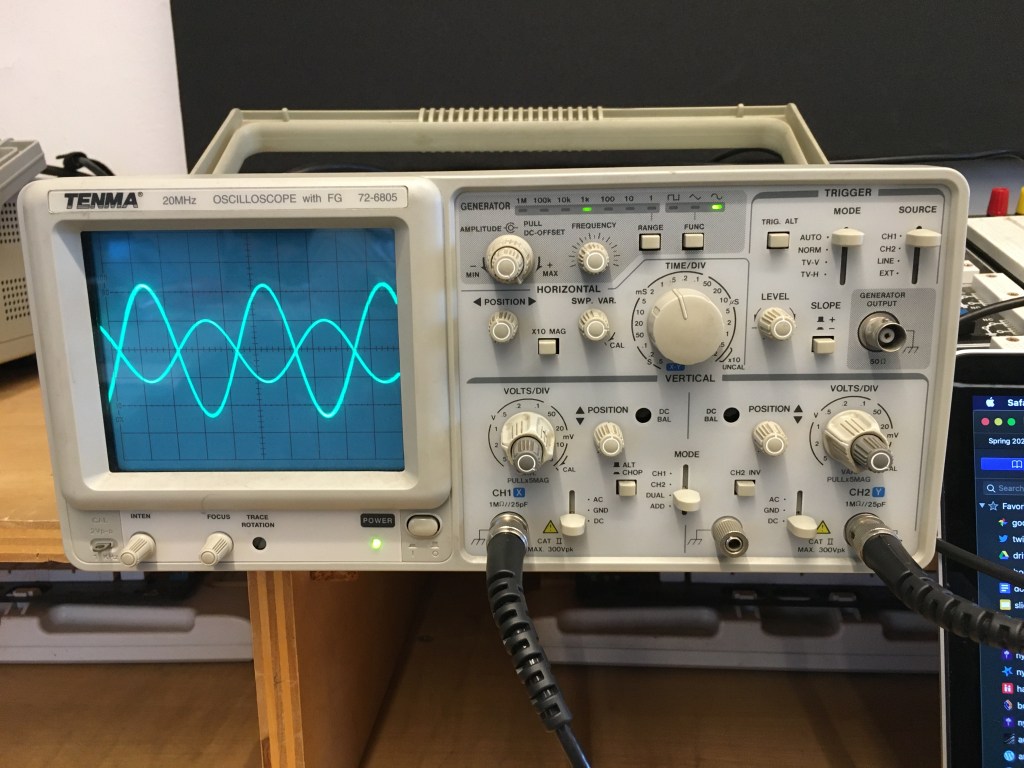

oscilloscope at the maximum amplification using the noninverting amplifier
oscilloscope showing the maximum amplification using an inverting amplifier

The inverting amplifier, while also amplifying the signal, shifts the waveform 180 degrees. The noninverting amplifier does not.
